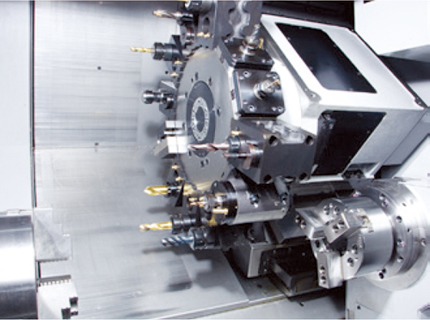

CNC Lathe
M06SJ-II M08SJ-II
Feature
・ The built-in motor is equipped on the main and back spindle
・ Cutting-off side can be machined with back spindle, and secondary machining is unnecessary
・ Realizes heavy-duty machining by rigid structure
・ Overwhelming cost performance to enable big profit by small investment even turning center with back spindle
Feature
| Machine tool parameter | M06SJ-II | M08SJ-II |
| Max. machinable dia. | φ260/φ51(Bar work)mm | φ280/φ65(Bar work)mm |
| Main spindle speed | 200～4,500min-1 | |
| Back spindle speed | 200～4,500min-1 | |
| No. of turret stations | 12-station turret | |
| Rapid traverse rate | X:24m/min Z:27m/min A:30m/min | |
| Main spindle motor | 7.5/11kW | |
| Width×Depth×Height | 2,470×1,850×1,750mm | |
| Weight | 5,270kg | |
・ The above machine parameters are for reference only.
・ For special technical specifications, please contact our sales offices or authorized distributors.
・ To continuously improve product performance, we reserve the right to modify product designs, specifications, and parameters without prior notice.
