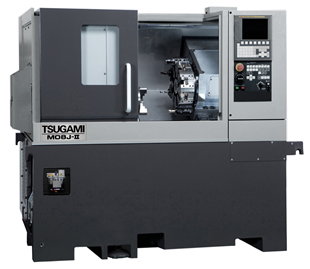

CNC Lathe
M06J-II M08J-II
Feature
・ Overwhelming cost performance
・ Brilliant cutting capacity realizes high productivity
・ On-board conversational programming software, Turnmate i is prepared as an option
・ Abnormal load detection function decrease the damage in case of machine crush
・ Safety setting up by the help of interference prevention function at debug mode
・ Accurate machining is realized by the thermal displacement compensation function
Feature
| Machine tool parameter | M06J-II | M08J-II |
| Max. machinable dia. | φ260/φ51(Bar work)mm | φ280/φ65(Bar work)mm |
| Main spindle speed | 200～4,500min-1 | 200～4,000min-1 |
| No. of turret stations | 8-station turret | |
| Rapid traverse rate | X:24m/min Z:27m/min | |
| Main spindle motor | 5.5/7.5kW | 9/11kW |
| Width×Depth×Height | 1,690×1,673×1,600mm | |
| Weight | 3,300kg | 3,300kg |
For special requirements on technical specifications, please consult with the company's sales branches or legitimate distributors.
